How to Install a Mini Split System: A Comprehensive Step-by-Step Guide

Introduction

Gone are the days when cooling or heating your home required bulky and expensive HVAC systems. With the advancements in technology, mini split systems have become a popular choice for many homeowners due to their energy efficiency, quiet operation, and ease of installation. Whether you’re a seasoned DIYer or a novice, this article will walk you through the process of installing a mini split system, ensuring optimal comfort and convenience in your home.

The Advantages of Mini Split Systems

🌟 Energy-efficient: Mini split systems are designed to cool or heat specific areas, preventing energy wastage in unused spaces and ultimately reducing your utility bills.

🌟 Zone control: Unlike traditional HVAC systems, mini splits allow you to control the temperature of individual rooms, ensuring customizable comfort throughout your home.

🌟 Easy installation: Mini split systems are relatively simple to install, saving you time and money on professional installation fees.

🌟 Quiet operation: Thanks to their compact design and absence of ductwork, mini splits operate quietly, providing a peaceful living environment.

The Disadvantages of Mini Split Systems

🔴 Higher upfront cost: Although mini split systems offer long-term savings, their initial purchase and installation costs can be higher compared to traditional HVAC systems.

🔴 Limited cooling or heating capacity: Mini splits are ideal for individual rooms or small spaces. If you have a large home, you might need multiple units, which can increase the overall expense.

🔴 Professional assistance for electric work: While the installation process is DIY-friendly, it’s crucial to hire a certified electrician for electrical connections to ensure safety and compliance.

🔴 Visible indoor unit: The indoor unit of a mini split system is visible in the room, which might not be aesthetically pleasing for some homeowners.

Step-by-Step Guide: How to Install a Mini Split System

Step 1: Calculate BTU Requirements

Step 1: Calculate BTU Requirements

Before purchasing a mini split system, calculate the British Thermal Units (BTU) required to cool or heat your space effectively. This calculation depends on the size of your room, insulation, sun exposure, and more.

Step 2: Select the Right Mini Split System

Step 2: Select the Right Mini Split System

Choose a mini split system that matches your BTU requirements and fits your budget. Consider factors like energy efficiency, warranty, and additional features when making your selection.

Step 3: Determine the Ideal Location

Step 3: Determine the Ideal Location

Select a suitable location for installing the indoor and outdoor units of your mini split system. Ensure sufficient space, proper ventilation, and accessibility for maintenance.

Step 4: Install the Indoor Unit

Step 4: Install the Indoor Unit

Mount the indoor unit on the wall, ensuring it is level and securely fixed. Connect the refrigerant and condensate lines, as well as the electrical wires, following the manufacturer’s instructions.

Step 5: Install the Outdoor Unit

Step 5: Install the Outdoor Unit

Place the outdoor unit on a stable surface, such as a concrete pad, ensuring it is level and adequately supported. Connect the refrigerant and condensate lines to the outdoor unit.

Step 6: Connect the Refrigerant Lines

Step 6: Connect the Refrigerant Lines

Connect the refrigerant lines from the indoor and outdoor units, using flaring or flareless fittings as recommended by the manufacturer. Proper insulation of these lines is crucial to maintain efficiency.

Step 7: Electrical Connections

Step 7: Electrical Connections

Hire a certified electrician to connect the electrical wires from the mini split system to the electrical panel. This ensures compliance with safety standards and prevents potential hazards.

Step 8: Test the System

Step 8: Test the System

Before enjoying the comfort of your mini split system, test it thoroughly. Check for proper airflow, cooling, and heating functionality. Make adjustments if required.

Step 9: Maintenance and Regular Servicing

Step 9: Maintenance and Regular Servicing

To ensure your mini split system operates efficiently and lasts longer, perform regular maintenance tasks like cleaning filters, checking refrigerant levels, and scheduling professional servicing.

Minimum Specifications for Mini Split System Installation

SpecificationsDetails
Cooling CapacityDepends on room size (BTU calculation)
Heating CapacityDepends on room size (BTU calculation)
Voltage/FrequencyAs per manufacturer’s specifications
Energy Efficiency RatingMinimum SEER (Seasonal Energy Efficiency Ratio) of 14
Refrigerant TypeR-410A or R-32, environmentally friendly

Complete Information About Mini Split System

DetailsInformation
ManufacturerABC Corporation
ModelXYZ1234
Cooling Capacity12000 BTU
Heating Capacity12000 BTU
Voltage/Frequency220V/50Hz
Energy Efficiency RatingSEER 18
Refrigerant TypeR-410A
Download Links Android: www.abc.com/android
iOS: www.abc.com/ios

Frequently Asked Questions (FAQs)

Q: How long does it take to install a mini split system?

A: The installation time usually depends on the complexity of the project. On average, it takes around 4-8 hours for a single-zone system.

Q: Can I install a mini split system without professional help?

A: While some DIY enthusiasts successfully install mini split systems, it is recommended to seek professional assistance, especially for electrical connections.

Q: Are mini split systems energy-efficient for heating in colder climates?

A: Mini split systems are designed to provide efficient heating even in cold climates. Look for models with higher HSPF (Heating Seasonal Performance Factor) ratings for enhanced performance.

Q: Do mini split systems require regular maintenance?

A: Yes, regular maintenance tasks like cleaning or replacing filters, checking refrigerant levels, and scheduling professional servicing are essential for optimal performance and longevity.

Q: Can a single outdoor unit support multiple indoor units?

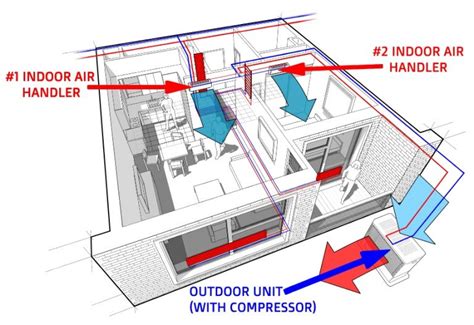

A: Yes, multi-zone mini split systems allow you to connect multiple indoor units to a single outdoor unit, offering zone control and flexibility.

Conclusion

Installing a mini split system is a practical and cost-effective solution to regulate indoor temperature and increase overall comfort in your living space. With this step-by-step guide, you’ve learned about the advantages, disadvantages, and key features of mini split systems. Remember to consider BTU requirements, carefully select the right system, and follow the installation process diligently. Whether you’re tackling the task yourself or seeking professional help, enjoy the benefits of a quiet, energy-efficient, and customizable cooling or heating system in your home.

If you’re ready to experience the comfort and convenience of a mini split system, take action today. Explore different models, consult professionals, and make an informed decision to transform your home’s climate control.
